洗袋風干流水線

Bag-washing and air-drying line

洗袋清洗風干流水線有滾筒洗袋機、提升機、振動篩、風干線、破袋挑選機五臺設備組成，首先將物料直接倒入破袋挑選機內進行破袋挑選，然后進入到洗袋機內由前半段加洗液清洗，采用循環水泵，蒸汽加熱系統，變頻調速、自動控溫，清洗后進入清水噴淋區，清洗干凈后直接進入振動篩，由振動篩將大部分水珠震動掉后進入風干線，風干完畢后直接裝箱即可。

Wash washing drum drying line is washing bag bag machine, winding machine, vibrating screen, main wind, broken bag of five selected machines equipment, first of all, the material directly into the bag of selected machines for breaking bag, then into the wash up from the first half of the bag machine wash clean, using circulating pump, steam heating system, frequency control, automatic temperature control, entering water spray area after cleaning, clean after directly into the vibrating screen, vibrating screen will be after shaking off most of the water drops into the main wind, dry finished packing directly.

下面介紹一下具體步驟：

Here are the steps:

1、洗袋風干流水線第一步是通過破袋挑選機對包裝袋進行挑選，將破損的包裝袋給挑選出來。設備架體采用不銹鋼304材質，不銹鋼輸送網帶。物料倒進破袋挑選機，利用水的浮力進行破袋的挑選，同時具有均勻布料的功能。

1. The first step of the bag-washing air drying line is to select the packaging bags through the broken bag picking machine and pick out the damaged packaging bags. The equipment frame is made of 304 stainless steel with stainless steel conveyor belt. The material is poured into the bag sorting machine, and the buoyancy of water is used to select the bag, which has the function of uniform cloth.

2、洗袋風干流水線第二步是滾筒式洗袋機，通過提升機將產品提升至洗袋機內進行洗袋。采用循環泵高壓噴淋清洗，然后物料進入下一環節清水噴淋清洗。螺旋出料進入振動篩。

2. The second step of the bag-washing air drying line is the roller bag-washing machine, which lifts the product into the bag-washing machine to wash the bag. Use circulating pump high pressure spray cleaning, and then the material into the next step of water spray cleaning. The spiral discharge enters the vibrating screen.

3、第三步振動篩的作用是將清洗完之后的包裝外面的水分通過震動去除。

3, the third step of the role of the vibrating screen is to clean the packaging after the water is removed through vibration.

4、洗袋清洗風干流水線的第四步是進入到風干線進行風干，首先前半部分通過大功率高溫風機對產品進行風干，后半部分是高溫烘干，將產品表面殘留的最后一點水分給烘干掉。常溫風干段各風機可獨立控制，客戶可根據產品干燥程度自行控制風機個數，降低能耗。高溫烘干段采用蒸汽盤管加熱，烘干包裝袋外表吹干水珠后的潮氣，同時為了保證低溫天氣水份蒸發慢時的風干效果。

4. The fourth step of the bag-cleaning and air-drying line is to go into the main line for air drying. First, the first half of the product is air-dried by a high-power high-temperature fan, and the second half is high-temperature drying to dry the last bit of water remaining on the product surface. Each fan can be independently controlled in the air drying section at normal temperature. Customers can control the number of fans according to the drying degree of the products to reduce energy consumption. The high-temperature drying section is heated by steam coil, and the outer surface of the drying bag is dried to dry the moisture after the water drops. At the same time, in order to ensure the air drying effect when the water evaporates slowly in low temperature weather.

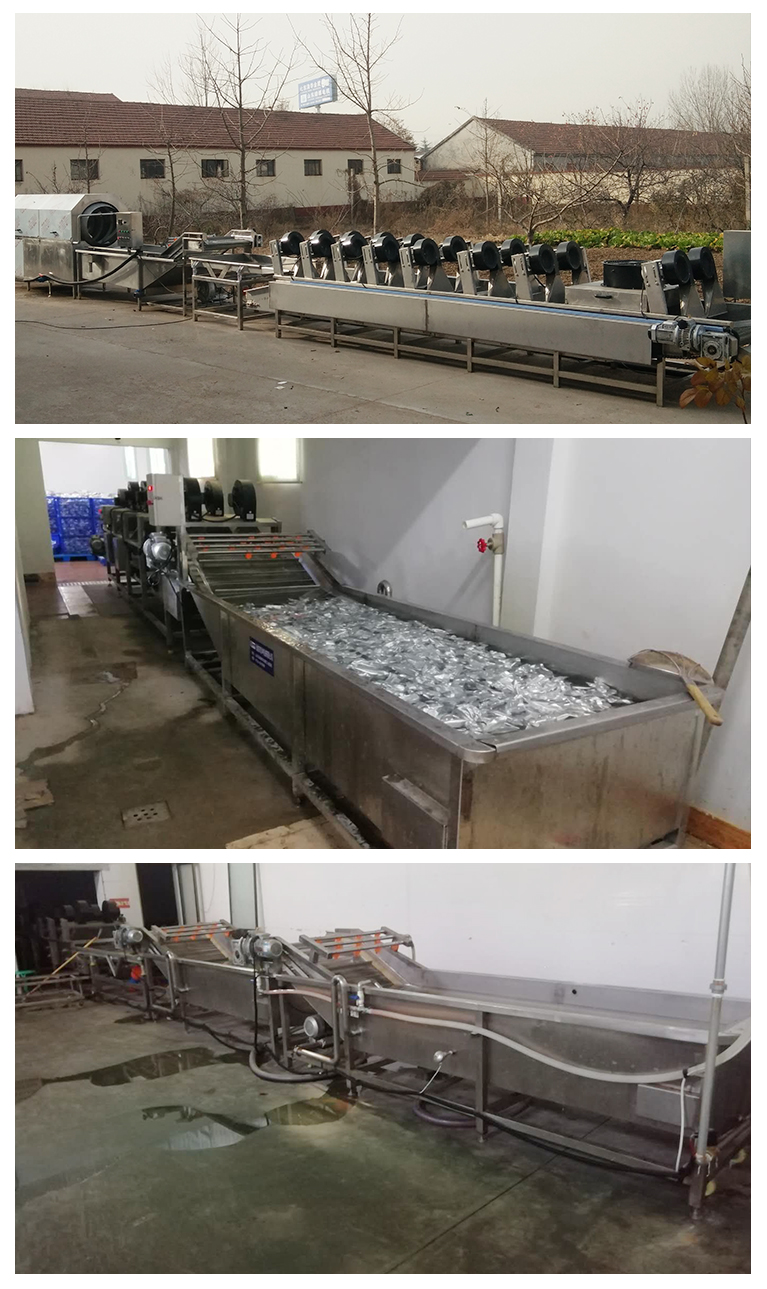

產品展示如下：

The product display is as follows：
